| Model |

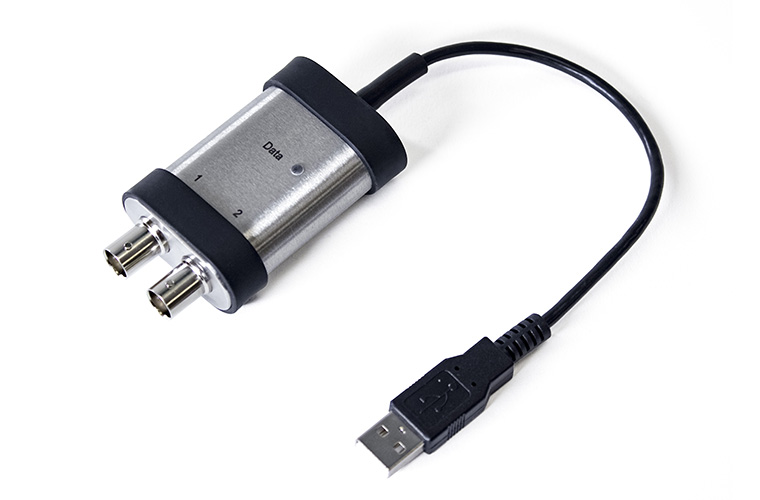

485B39
|
| Channel Count | 2 |
|---|
| Voltage Range (Nominal) | }10 V pk
|
|---|
| ADC Resolution | 24-bit
|
|---|
| Frequency Range (} 5 %) | 0.8 Hz to 20.7 kHz |
|---|
| Sample Rate | 48, 44.1, 32, 22.05, 16, 11.025, 8 kHz |
|---|
| Anti-Aliasing Low-Pass Filter (-3 dB)
at 48 kHz | 22.9 kHz |
|---|
| AC High-Pass Filter (-3 dB)
(48 kHz to 8 kHz) | 1 Hz to 0.5 Hz
|
|---|
| Digital Output Interface | USB Class 1 Audio / Type A |
|---|
| Sensor Inputs | 2 BNC Jacks |
|---|
| Size (length x width x height) | 2.4" x 1.5" x 0.7"
(60 mm x 39 mm x 19 mm) |
|---|
|
